Product model：CY300BK/CY600BK/CY900BK
Lanes number：2-18 lanes
Capacity：30--50 / Max.30-50cycle/min/lane
Bag size：L：50-180mm W：17-105mm
Film width&thickness：Max.300-900mm,0.07--0.1mm
Measuring Method：1、Vomuletric cup;2、weigher
Sealing type：Back sealing/stick bag
Cutting type：1、Straight cutting；2、Zig zag cutting 3、Round cutting；4、Die-cut
Power supply：1N+PE/50HZ/AC220V/380V/3.5kw
Air consumption：0.8 MPA 0.8m3/min
Dimension：1385*918*2005mm
Weight：400-950kg

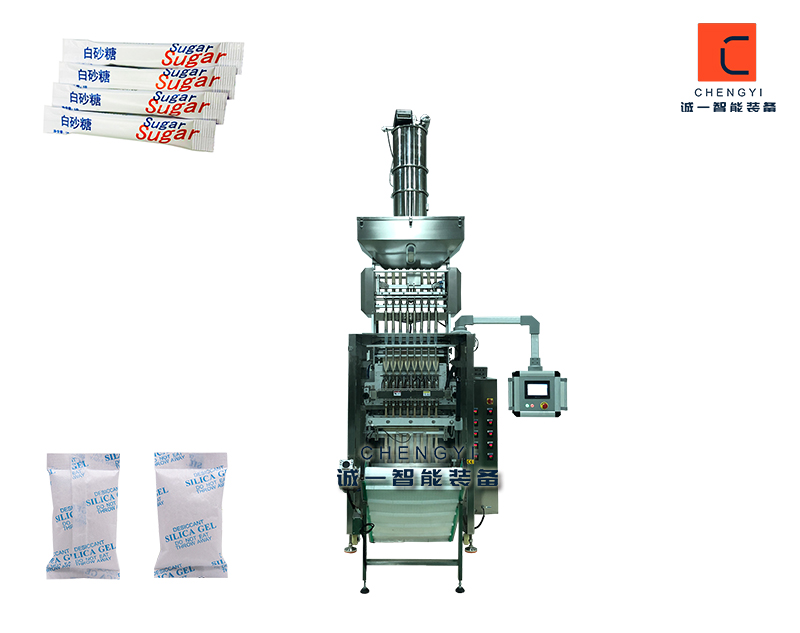

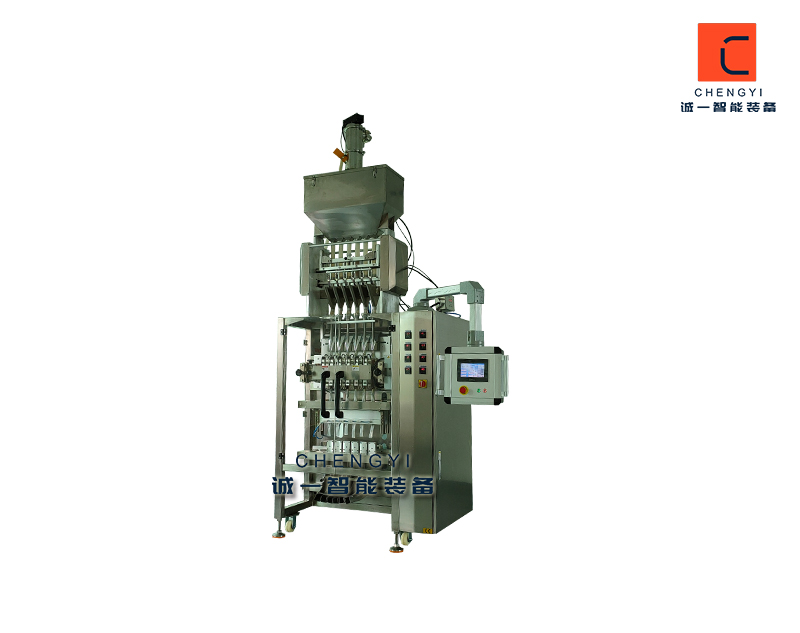

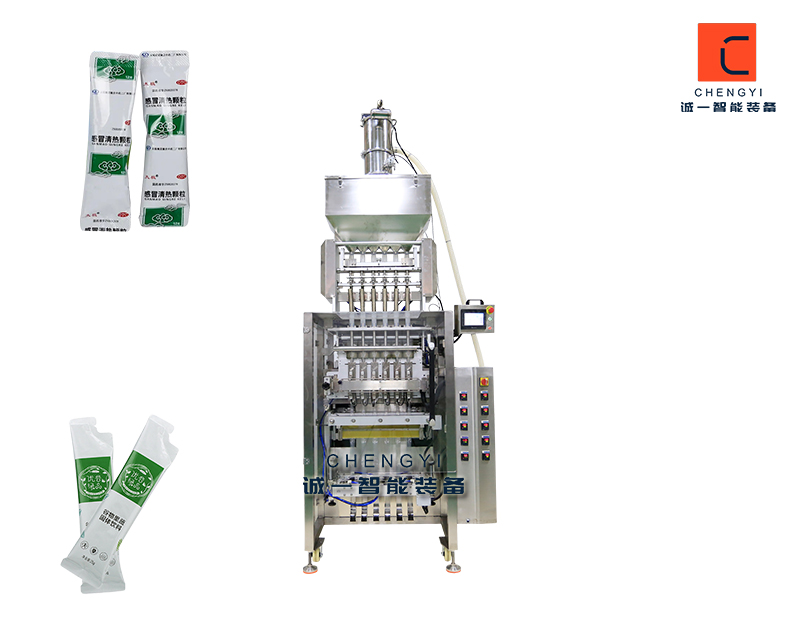

The multi column back sealing particle packaging machine is suitable for granular products in industries such as medicine, food, daily chemicals, pesticides, and health products, such as sugar, coffee, seasoning, desiccants, salt, laundry detergent, activated carbon, pharmaceutical particles, granules, etc.
We can help you find the goods you want by phone
video

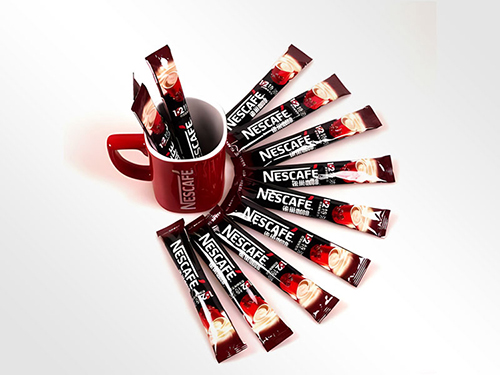

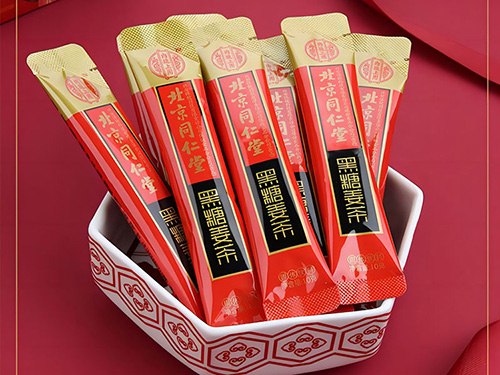

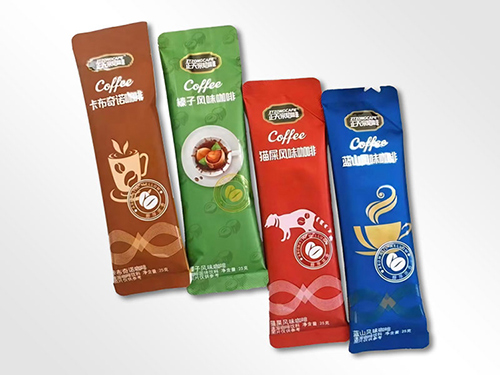

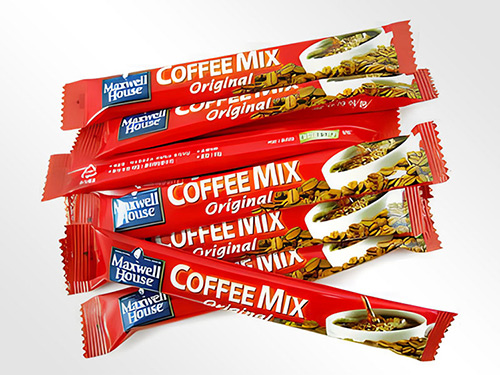

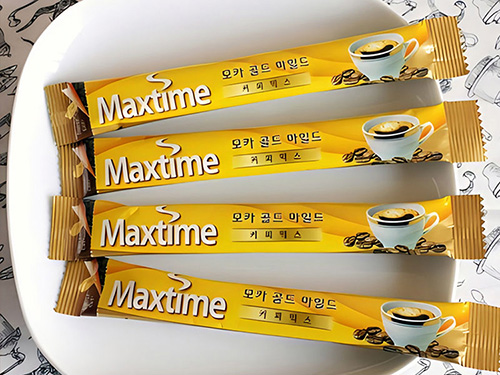

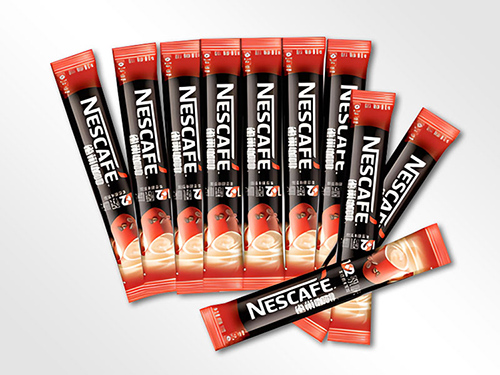

Packaging sample bag
Parameters
| Model | CY300BK | CY600BK | CY900BK |
| Lanes | 2-4 lanes | 3-10 lanes | 4-16 lane |
| Capacity | 30--50 Bags/Lane/Min | ||
| Bag width | 17-70mm | 17-95mm | 17-105mm |
| Bag length | 50-180mm | ||
| Film width | Max.300mm | Max.600mm | Max.900mm |
| Measuring | Vomuletric cup/weigher | ||
| Sealing type | Back seal | ||
| Cutting type | Straight cutting/Zig zag cutting/Round cutting/Die-cut | ||
| Power supply | 50HZ/AC220V/3.5kw | 50HZ/AC220V/5.5kw | 50HZ/AC220V/7.5kw |
| Air consumption | 0.8 MPA 0.8m3/min | ||
| Dimension | 1900*1440*3130mm | 1860*1750*3300mm | 1860*2050*3375mm |
| Weight | 900kg | 1100kg | 1400kg |
Details
Electric box
Machine side
Machine Side 1
Front of the machine
Measuring cup measuring system (1)
Bucket
Blanking hose channel
Vacuum feeding
